Especificações resumidas
-
Process temperature
0 to 85 °C (32 to 185 °F)
-
Process pressure
For manual assembly operation : max 2bar (29psi)
Medium pressure : max. 10bar (145psi)
Campo de aplicação

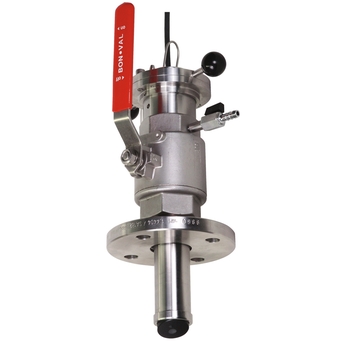

Cleanfit CUA451 is a retractable assembly for all fields of turbidity and suspended solids measurements. It is equipped with a stop bolt, O-ring seals and a ball valve, enabling complete separation of process and sensor compartment. This allows you to access the sensor without interrupting the process or emptying the pipe or tank. Better still, benefit from increased process and operational safety and significantly reduced maintenance effort across the whole measuring point.
The Cleanfit CUA451 is a retractable turbidity assembly for:
Wastewater treatment plants:
- Sludge in the recirculation line
- Sludge centrifuge monitoring
- Primary sludge and sludge treatmentDrinking and process water:
- Sludge treatment in water works
- Filter monitoring and filter backwash
- Monitoring of phase break processesFilter monitoring and filter backwash
Utilities of all industries:
- Sludge treatment
- Recirculation lines
- Cooling water monitoring
Benefícios
One assembly for all applications: The 'one for all' principle optimizes stockholding, speeds up project handling and simplifies life cycle management.
Easy and safe maintenance: Sensor service and cleaning without process interruption.
Robust design: Process pressure up to 10 bar (145 psi), manual operation up to 2 bar (29 psi).
Convenient and time-saving operation: Rinse-water connection allows cleaning without removing sensor from the process.
Predecessor
-
Produtos com tecnologia de ponta
- Altamente funcional e prático
Excelência técnica
Simplicidade
-
Produtos especializados
- Desenvolvidos para aplicações exigentes
Excelência técnica
Simplicidade
Variável
Versões FLEX | Excelência técnica | Simplicidade |
---|---|---|
Versão Fundamental Atende suas necessidades básicas de medição |
Excelência técnica
|
Simplicidade
|
Versão Lean Lida com seus principais processos facilmente |
Excelência técnica
|
Simplicidade
|
Seleção Extended Otimiza seus processos com tecnologias inovadoras |
Excelência técnica
|
Simplicidade
|
Versão Xpert Controla suas aplicações mais difíceis |
Excelência técnica
|
Simplicidade
Variável |
-
-
Informações Técnicas (TI)
Cleanfit CUA451
Conjunto retrátil manual para água, água residual e meio de processo
EN PT 18/02/202131/01/201923/09/201401/11/200301/03/2003Idioma:
Português
Versão:
18/02/2021
Tamanho do arquivo:
779.3 KB
Nome do arquivo:
TI00369CPT_1521.pdf
-
-
-
Instruções de Operação (BA)
Cleanfit CUA451
Conjunto de processos retrátil
EN PT 18/02/202130/11/201823/09/201401/04/200601/11/2003Idioma:
Português
Versão:
18/02/2021
Tamanho do arquivo:
1 MB
Nome do arquivo:
BA00369CPT_1521.pdf
-
-
-
Instruções de Operação (BA)
Operating Instructions OUA451
Retractable Process Assembly
EN PT 17/12/2014Idioma:
Inglês
Versão:
17/12/2014
Tamanho do arquivo:
869.9 KB
Nome do arquivo:
BA01366OEN_0114.pdf
-
-
-
Documentação especial (SD)
SD CleanFit Servicekits / Spare part kits
CleanFit Wechselarmaturen / Retractable assemblies
EN PT 01/07/2003Idioma:
Inglês
Versão:
01/07/2003
Tamanho do arquivo:
1.6 MB
Nome do arquivo:
Sd096ca2.pdf
-
-
-
Declaração do Fabricante
Product family: CleanFit
Product root: CUA451-
Declaration number: HE_01079_01.18
Manufacturer specification: PEDEN PT 07/12/2018Idioma:
Inglês
Versão:
07/12/2018
Tamanho do arquivo:
261.2 KB
Nome do arquivo:
HE_01079_01.18_PED_CUA451.pdf
-
-
-
Texto da proposta
Cleanfit CUA451
Prozess-Wechselarmatur für Trübungssensoren zur In-Line-Messung in
Rohrleitungen zum Sensorein- und Ausbau unter Prozessbedingungenmit
ArretierungIdioma:
Alemão
Versão:
30/08/2012
Tamanho do arquivo:
22 KB
Nome do arquivo:
TTCUA451DE.doc
-
