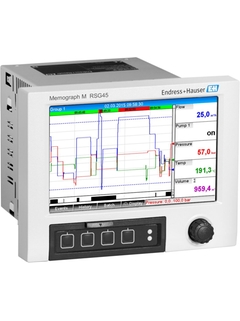

Memograph M RSG45
Advanced Data Manager
Salva, visualiza, analisa e comunica
O Advanced Data Manager é um sistema flexível e robusto que organiza os valores do processo. Por ter operação intuitiva, é fácil e rápido integrar o Memograph M a qualquer aplicação. Os valores do processo medidos são claramente exibidos no display e registrados de forma segura, enquanto os limites são monitorados e analisados. Usando de protocolos de comunicação, os valores medidos e calculados podem ser facilmente transmitidos a sistemas de níveis mais altos e os módulos individuais da fábrica podem ser interligados. Disponível também como a versão em trilho DIN sem display.
- F
- L
- E
- X
-
Produtos com tecnologia de ponta
- Altamente funcional e prático
Excelência técnica
Simplicidade
-
Produtos especializados
- Desenvolvidos para aplicações exigentes
Excelência técnica
Simplicidade
Variável
Versões FLEX | Excelência técnica | Simplicidade |
---|---|---|
Versão Fundamental Atende suas necessidades básicas de medição |
Excelência técnica
|
Simplicidade
|
Versão Lean Lida com seus principais processos facilmente |
Excelência técnica
|
Simplicidade
|
Seleção Extended Otimiza seus processos com tecnologias inovadoras |
Excelência técnica
|
Simplicidade
|
Versão Xpert Controla suas aplicações mais difíceis |
Excelência técnica
|
Simplicidade
Variável |
-
Especificações resumidas
-
Input
20 analog (max) (U, I, TC, RTD, frequency, pulse)
20 HART (max) (HART, 4…20mA)
14 digital (max) (control, event and counting inputs) -
Output
12 relays (max)
2 analog (max) (I, pulse)
1 transmitter power supply -
Display
TFT 7" colour graphic display
TFT 7" colour graphic display with touch panel -
Storage/Recording
internal memory
SD card
USB flash drive -
Calculations
Mass/heat quantity
heat quantity difference
-
Seleção rápida
Configuração individual
-
Benefícios
Alto grau de segurança de dados: armazenamento de dados à prova de adulteração e autorização de acesso personalizado com assinatura eletrônica (FDA 21 CFR 11)
Cartão de entrada HART: os sensores HART diretamente conectados propiciam valores precisos do...
-
Campo de aplicação
A solução para todas as suas tarefas. Por exemplo, para:
Tecnologia de medição de processo
Usinas e fornecimento de energia
Monitoramento/cálculo de eficiência da caldeira de vapor
Setor farmacêutico e alimentos e bebidas
Engenharia e construção de fábricas...
