Temperature transmitter

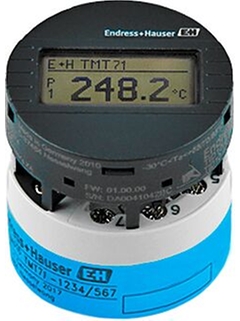

Product picture temperature transmitter TMT71 with TID10 ©Endress+Hauser

Temperature transmitter with pluggable display TID10

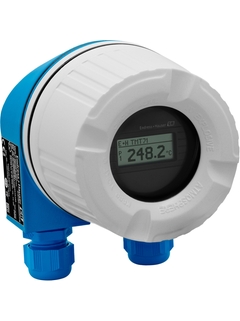

Product picture temperature transmitter TMT71 installed in field housing TA30H ©Endress+Hauser

Temperature transmitter installed in a explosion protected field housing

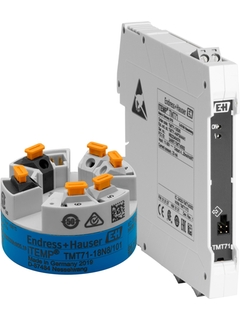

Product picture temperature transmitter TMT71 ©Endress+Hauser

Transformation of sensor signals into stable and standardized output signals for all industries

Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals. The standardized 4 to 20 mA output signal is used for process measurement. Swift and easy commissioning, operation and maintenance via PC software or with integrated Bluetooth® technology and Endress+Hauser SmartBlue App.

Seleção rápida

Escolha uma das opções sugeridas
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>


Configuração individual

Continue sua seleção entre todas as opções possíveis
  • Benefícios

    • Safe operation in hazardous areas thanks to international approvals

    • Reliable operation thanks to sensor and device monitoring

    • Integrated Bluetooth® interface for the wireless display of measured values and configuration via Endress+Hauser SmartBlue App...

  • Campo de aplicação

    • Bluetooth®-enabled or PC programmable temperature transmitter for the conversion of various input signals into a scalable, analog 4 to 20 mA output signal

    • Improved process efficiency and increased plant uptime

    • Universal input for resistance thermometers...

Características e especificações



  • Measuring principle

    Head transmitter

  • Input

    1 x RTD, TC, Ohm, mV

  • Output

    1 x analog 4...20 mA

  • Auxiliary power supply

    10…36 V DC

  • Communication

    PCP (pc-programmable)

    Bluetooth® technology

  • Installation

    Terminal head form B

    Field housing

  • Accuracy

    (Pt100) <= 0,1K

  • Galvanic isolation


  • Certification

    ATEX II1G Ex ia IIC T6

    ATEX II3G Ex ic IIC T6 Gc

    ATEX II3D Ex tc IIIC Dc

    ATEX II3G Ex nA IIC T6

    ATEX II2G Ex ia IIC T6, II3D Ex ia IIIC Dc

    ATEX II1G Ex ia IIC T6, II3D

    ATEX II3G Ex nA IIC T6, II3D

    ATEX II2G Ex db IIC T6 Gb, II2D Ex tb IIIC Db

    CSA C/US IS, NI I / 1+2/A-D

    CSA C/US XP, NI, DIP I, II, III/1+2/A-G

    IECEx Ex d T6 Gb, Ex tb IIIC Db

    ATEX IECEx II1G Ex ia IIC T6 Ga
