Instrumentação fácil de localizar através da categorias de filtros

Medidor de vazão Coriolis - Proline Promass F 300

F

L

E

X

Produtos simples
Fácil de escolher, instalar e operar

Excelência técnica

Simplicidade

O que é FLEX?

Produtos padrão
Confiável, robusto e baixa manutenção

Excelência técnica

Simplicidade

O que é FLEX?

Produtos com tecnologia de ponta
Altamente funcional e prático

Excelência técnica

Simplicidade

O que é FLEX?

Produtos especializados
Desenvolvidos para aplicações exigentes

Excelência técnica

Simplicidade

Variável

O que é FLEX?

Versões FLEX	Excelência técnica	Simplicidade
F L E X Versão Fundamental Atende suas necessidades básicas de medição	Excelência técnica	Simplicidade
F L E X Versão Lean Lida com seus principais processos facilmente	Excelência técnica	Simplicidade
F L E X Seleção Extended Otimiza seus processos com tecnologias inovadoras	Excelência técnica	Simplicidade
F L E X Versão Xpert Controla suas aplicações mais difíceis	Excelência técnica	Simplicidade Variável

Saiba mais sobre a versões FLEX

Comparar

Medidor de vazão Proline Promass F 300

O medidor de vazão com alta precisão, robustez e um transmissor compacto e de fácil acesso

Max. measurement error Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
Volume flow (liquid): ±0.10 %
Mass flow (gas): ±0.25 %
Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 2 200 000 kg/h (0 to 80 840 lb/min)

Medium temperature range Standard: –50 to +150 °C (–58…+302 °F)
Option: –50 to +240 °C (–58…+464 °F)
High temperatur option: –50 to +350 °C (–58…+662 °F)
Option: –196 to +150 °C (–320 to +302 °F)

Max. process pressure PN 100, Class 600, 63K

Wetted materials Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304)

Imagem do medidor de vazão Coriolis Proline Promass P 100 / 8P1B para a indústria de life sciences

F

L

E

X

Comparar

Proline Promass P 100 Medidor de vazão Coriolis

O especialista para as life sciences com um transmissor ultracompacto

Max. measurement error Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 70 000 kg/h (0 to 2570 lb/min)

Medium temperature range Standard: –50 to +150 °C (–58 to +302 °F)
Option: –50 to +205 °C (–58 to +401 °F)

Max. process pressure PN 63, Class 300, 40K

Wetted materials Measuring tube: 1.4435 (316L)
Connection: 1.4435 (316L); 1.4404 (316/316L)

Product picture of Proline Promass U 500

F

L

E

X

Comparar

Proline Promass U 500 Coriolis flowmeter

First single-use flowmeter for biotech applications with premium performance, cGMP compliance, and up to 4 I/Os

Max. measurement error Mass flow (liquid): ±0.5%

Measuring range 0 to 75 kg/h (0 to 165,3 lb/min)

Medium temperature range 3 to 60°C (37.4 to 140°F)

Max. process pressure 6 bar (87 psi)

Wetted materials Measuring tubes: Stainless steel 1.4435, 316L
Hose connection nipple: Makrolon Rx 1805 polycarbonate

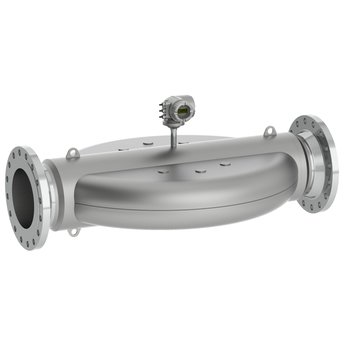

Foto do medidor de vazão Coriolis Proline Promass X 300 / 8X3B para a indústria de óleo e gás

F

L

E

X

Comparar

Proline Promass X 300 Medidor de vazão Coriolis

A mais alta capacidade do medidor de vazão de quatro tubos com transmissor compacto e fácil de acessar

Max. measurement error Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
Volume flow (liquid): ±0.10 %
Mass flow (gas): ±0.35 %
Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 4100 t/h (0 to 4520 tn. sh./h)

Medium temperature range –50 to +180 °C (–58 to +356 °F)

Max. process pressure PN 100, Class 600

Wetted materials Measuring tube: 1.4404 (316/316L)
Connection: 1.4404 (316/316L)

Coriolis flowmeter - Proline Promass A 100

F

L

E

X

Comparar

Proline Promass A 100 Coriolis flowmeter

The single-tube flowmeter for smallest flow quantities with an ultra-compact transmitter

Max. measurement error Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.5 %
Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 450 kg/h (0 to 16.5 lb/min)

Medium temperature range –50 to +205 °C (–58 to +401 °F)

Max. process pressure PN 40, Class 300, 20K, 400 bar (5800 psi)

Wetted materials Measuring tube: 1.4539 (904L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4539 (904L); Alloy C22, 2.4602 (UNS N06022); 1.4404 (316/316L)

Picture of Coriolis flowmeter Proline Promass A 200 / 8A2B for process applications

F

L

E

X

Comparar

Proline Promass A 200 Coriolis flowmeter

Genuine loop-powered flowmeter for accurate measurement of lowest flow rates

Max. measurement error Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 450 kg/h (0 to 16.54 lb/min)

Medium temperature range -50 to 205 °C (-58 to 401 °F)

Max. process pressure 430.9 bar (6250 psi)

Wetted materials Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

Picture of Coriolis flowmeter Proline Promass A 300 / 8A3C for process applications

F

L

E

X

Comparar

Proline Promass A 300 Coriolis flowmeter

Accurate single-tube flowmeter for lowest flow rates with a compact, easily accessible transmitter

Max. measurement error Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 450 kg/h (0 to 16.54 lb/min)

Medium temperature range -50 to 205 °C (-58 to 401 °F)

Max. process pressure 430.9 bar (6250 psi)

Wetted materials Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

Picture of Coriolis flowmeter Proline Promass A 500 / 8A5C for process applications

F

L

E

X

Comparar

Proline Promass A 500 Coriolis flowmeter

Accurate single-tube flowmeter for lowest flow rates, as remote version with up to 4 I/Os

Max. measurement error Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 450 kg/h (0 to 16.54 lb/min)

Medium temperature range -50 to 205 °C (-58 to 401 °F)

Max. process pressure 430.9 bar (6250 psi)

Wetted materials Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

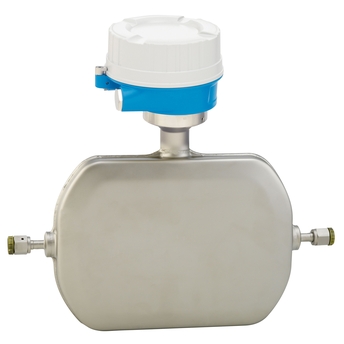

Picture of flowmeter Proline Cubemass C 100 for measuring smallest quantities of liquids and gases

Comparar

Proline Cubemass C 100 Coriolis flowmeter

Compact sensor for smallest quantities with an ultra-compact transmitter

Max. measurement error Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.5 %
Density (liquid): ±0.0005 g/cm3

Measuring range 0 to 1000 kg/h (0 to 37 lb/min)

Medium temperature range –50 to +205 °C (–58 to +401 °F)

Max. process pressure PN 40, Class 300, 10K, 400 bar (5800 psi)

Wetted materials Measuring tube: 1.4539 (904L)
Connection: 1.4539 (904L); 1.4404 (316/316L)

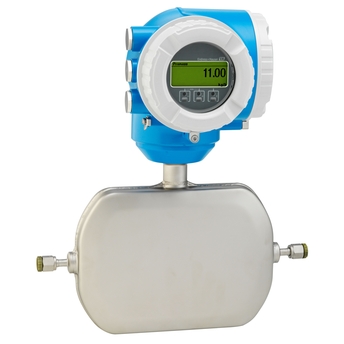

Picture of Coriolis flowmeter Proline Cubemass C 300 / 8C3B

Comparar

Proline Cubemass C 300 Coriolis flowmeter

Compact sensor for smallest quantities with a compact, easily accessible transmitter

Max. measurement error Mass flow (liquid): ±0.10 %
Volume flow (liquid): ±0.10 %
Mass flow (gas, Tantalum only): ±0.50 %
Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 1000 kg/h (0 to 37 lb/min)

Medium temperature range Tantalum: –50 to +150 °C (–58 to +302 °F)
Zirconium: –50 to +205 °C (–58 to +401 °F)

Max. process pressure PN 40, Class 300, 10K, 400 bar (5800 psi)

Wetted materials Measuring tube: 1.4539 (904L)
Connection: 1.4539 (904L); 1.4404 (316/316L)
