CSF34 is an automatic water sampler for water & wastewater treatment and industrial processes.

Automatic water sampler
for North America
Liquistation CSF34

Name: Liquistation CSF34
Brand: Endress+Hauser
Availability: InStock

Fully automatic sampling in water, wastewater and industrial applications

CSF34

Compare

This product is not available in this region.

Please contact your Endress+Hauser sales partner for any further questions.

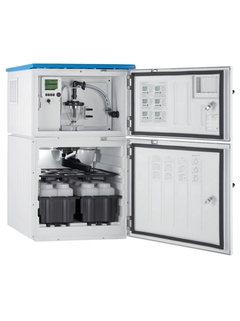

The Liquistation CSF34 automatic water sampler is compliant with US and Canadian regulations. — Liquistation CSF34 is an automatic water sampler for monitoring wastewater treatment plants, sewage networks, surface water and industrial processes in accordance with US and Canadian regulations.

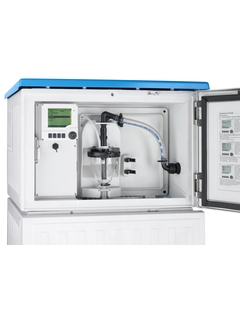

The CSF34 vacuum sampler offers accurate sample volumes and a high sample transport velocity. — Liquistation CSF34 with vacuum pump. It is used for most standard sampling applications as it offers accurate, reproducible sample volumes and a high sample transport velocity.

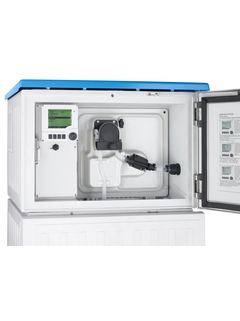

The CSF34 peristaltic sampler allows cyclic rinsing of the suction line and variable sample volumes. — Liquistation CSF34 with peristaltic pump. This version is recommended when cyclic rinsing of the suction line or variable sample volumes are desired.

Liquistation CSF34 is an automatic water sampler for monitoring wastewater treatment plants, sewage networks, surface water and industrial processes in accordance with US and Canadian regulations.

Specs at a glance

Functions

Stationary sampler
Suction height

8m (26.25ft)
Cabinet

Plastic ASA+PC
Process temperature

Sample temperature 2 to 50°C (36 to 122°F)
Process pressure

max 0,8bar ( 11.6PSI)

See all specifications

Field of application

Sampling made safe and easy. Liquistation CSF34 complies with North American water regulation and features a fail-safe cooling system and vandalism-proof housing guaranteeing outstanding safety for your samples. Easy, menu-guided sample programming and tool-free maintenance save you time in your everyday tasks. Liquistation can be upgraded to a complete measuring station for modern environmental monitoring at any time giving you the flexibility to address future demands.

Liquistation CSF34 is available in the USA, Canada, and Mexico. It is suitable for the following applications:

Municipal and industrial wastewater treatment plants
Stormwater, watershed, and river monitoring
Resource water
Laboratories and water authorities
Determination of total maximum daily loads (TMDL)
Monitoring of liquid media in industrial processes

Benefits

Automatic water sampling in full compliance with US and Canadian regulations and the ISO 5667 standard
100% adaptable to any monitoring task from time- or flow-controlled sampling to event-controlled sampling and multiple sampling routines
By connecting up to four Memosens sensors, the sampler can be upgraded to a fully-fledged measuring station (e.g. for event monitoring)
Offers all Liquiline platform benefits, including uniform operation and standardized components, and supports fieldbus-independent data transfer to Netilion with Liquiline Edge Module CYY7 enabling remote monitoring and IIoT services
Fully integrable in any process control system thanks to digital fieldbus communication and remote access via web server
Quick cleaning and maintenance thanks to easy, tool-free removal of wetted parts. Heartbeat Technology enables status-oriented maintenance of the device, saving resources and costs
Latest and environmentally friendly cooling technology without hydrofluorocarbons (HFC) for optimal processing of your samples

Success stories

Automated pH measuring point in wastewater

The Dow plant in Stade relies on Endress+Hauser solutions for pH monitoring in the treatment of production wastewater.
Read the full story
Improved thickener operation at Minera Valle Central

The measurement of interface in thickeners is done manually, while the turbidity measurement is done by obtaining samples sent to the laboratory. With Endress+Hauser there is an automated solution.
Read the full story
The future of mining

Automatic cleaning, calibration, and monitoring of Memosens pH sensors with the CDC90 for efficient operations in mining applications.
Read the full story
How Istria is quenching its thirst

Endress+Hauser enables fast and reliable water analysis at Butoniga Reservoir, ensuring optimal layer selection, improved water quality and reduced operating costs.
Read the full story
50% less precipitant - 100% reliability and cooperation

IDEA achieved tremendous cost savings through continous monitoring with the CA80PH Analyzer at their site in Wallonia
Read the full story

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Could also interest you

Media
Firmware for Liquiline 4-wire devices

Click here to download the latest firmware version of the Liquiline platform
More information
Related topics
Liquiline: cutting-edge transmitter platform

By choosing the Liquiline platform, you’re effectively choosing to spend less money on stock holding, save installation time and gain operational safety!
More information
Related topics
Memosens 2.0: Cutting-edge sensor technology reloaded

Make life easier, increase process safety and stay connected with Memosens 2.0 digital technology.
More information
About us

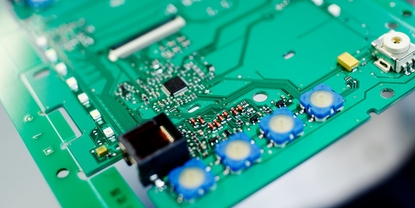

Sampler and analyzer production
